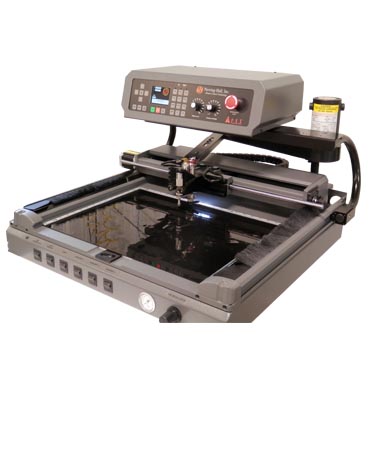

Model 400 Engraving Machine Capabilities

The HP-400 engraving machine was designed to meet the needs of machine shops with requirements to produce 19″ rack panels and offer increased work-holding stability for difficult jobs in harder metals. The HP-400’s reputation for tackling tough jobs is what has made this model one of our most successful flat bed engravers.

If your requirements include first class quality on control panels, serializing metal parts or large volume production engraving, then you should consider the HP-400 engraving machine.

Model 400

Specifications

  • Engraving Area: 300 sq. in.
  • X-Axis Travel: 20″
  • Y-Axis Travel: 15″
  • Work Holding Capacity: X-Axis 21″ & Y-Axis Unlimited
  • Dimensions: 32″ W x 31″ D x 26″ H
  • Weight: 72lb. Net / 85lb. Gross

Table Design

  • Open-Bed/Pass Through Design
  • Datum Detectors
  • Type: Dynagrip
  • Options: Clamping Table Plates or T-Slot

Standard/Optional Features on All Flatbed Models

We provide our customers with amazing standard engraving machines with the ability to upgrade with optional features. These features are available for all our flatbed models. We understand that every clients needs are different and that is why we provide the very best range of products to our clients. Looking to upgrade your current machine? No problem, Newing-Hall is proud to help our clients get the most out of their engraving machines.

Spindle: 11/64" Rotary

  • Options: 1/4″, Collet, Diamond Drag
  • Actuation: Adjustable Pneumatic (Stepper Optional)
  • Vertical Travel: 1″
  • Clearance: 1.125″ (up to 12″ Optional)
  • Speed: 0-24,000 RPM/Variable
  • Motor: 1/5 hp DC Permanent Magnet
  • Bearings: Three Class 7
  • Multiple Spindles: Available

Powerbase & Vise: Optional

  • Holding Capacity: Up to 16″ L x 12″ H
  • Vise Adjustment: Up to 65° Rotation, 35° Tilt

Cylindrical: Optional

  • Holding Capacity: .25″ to 10.5″ Dia. x 16″ L
  • Concentricity: .002″

Recommended maximum engraving diameter 8.5 inches

Available Accessories for Model 400

Whether you are looking for replacement parts or just ready to upgrade your system, we have the accessories that can keep your engraving machine working at peak performance.

Diamond Spindle

Chip Removal

Table Vise

Braille Spindle
